Coil Cars, Turnstiles & Upenders

ROWE^© offers a variety of coil storage devices to fit any application. Storage racks and turnstiles provide multiple-coil storage. Upenders allow adjustment for "eye-in-the-sky" coils.

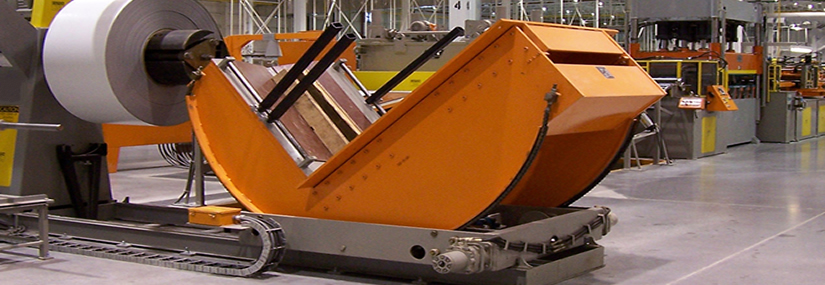

Coil cars and upender cars allow for in-system coil storage as well as providing a method for loading a coil onto the stock reel.

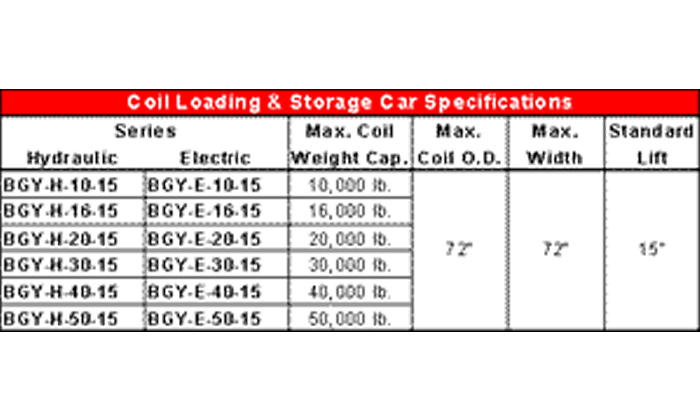

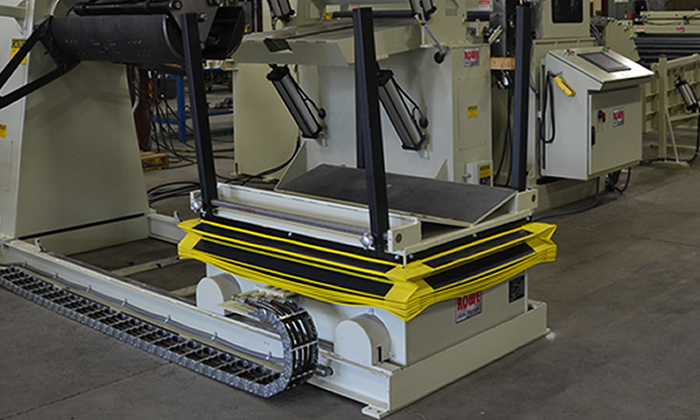

Standard Features (Hydraulic Coil Car)

Standard Features of the Hydraulic Coil Car
• Hydraulic Scissor Lift (15" lift standard)
• (4) Wheel Drive
• Coil Weight Capacities from 10,000 to 50,000 LBS
• "V" Nest Coil Cradle Design
• Narrow Coil Support Arms
• Hand Held Pendant (forward, reverse, up, down)

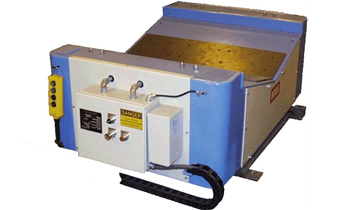

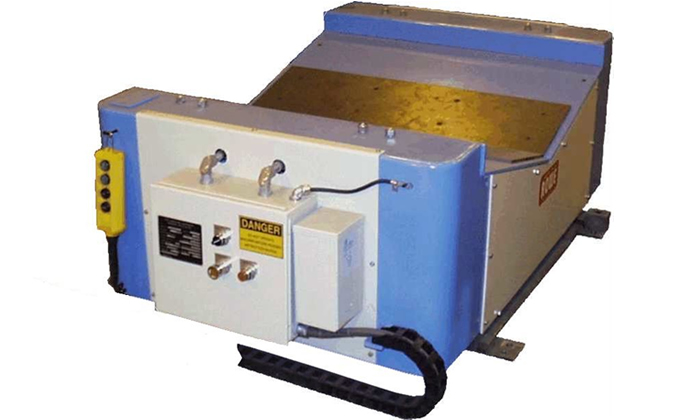

Standard Features (Electro—Mechanical Coil Car)

Standard Features of the Electro—Mechanical Coil Car
• Coil Weight Capacities from 10,000 to 50,000 LBS
• Electro—Mechanical Jackscrew Lift (15" lift standard)
• (2) Wheel Drive
• "V" Nest Coil Cradle Design
• Hand Held Pendant (forward, reverse, up, down)

Available Options for Coil Cars

Available Options for Coil Cars
• 24" Lift on "V" Nest
• Micarta Facing (for surface critical materials)
• 180° Swivel
• Automatic Down & Out
• Automatic Coil Centering System
• Hand Crank Narrow Coil Supports

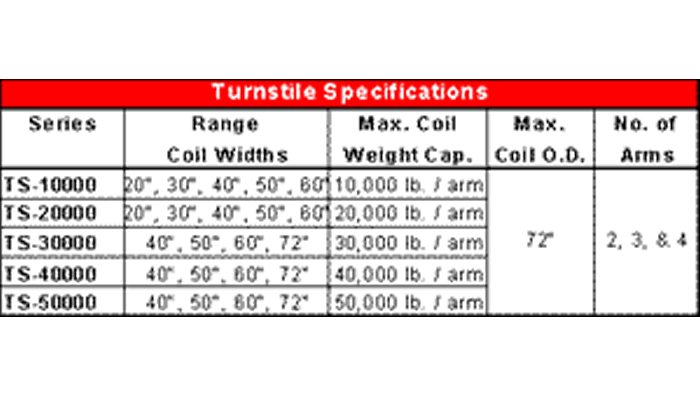

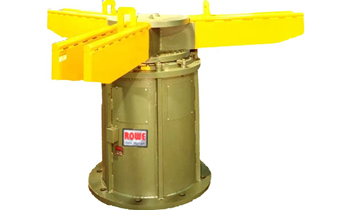

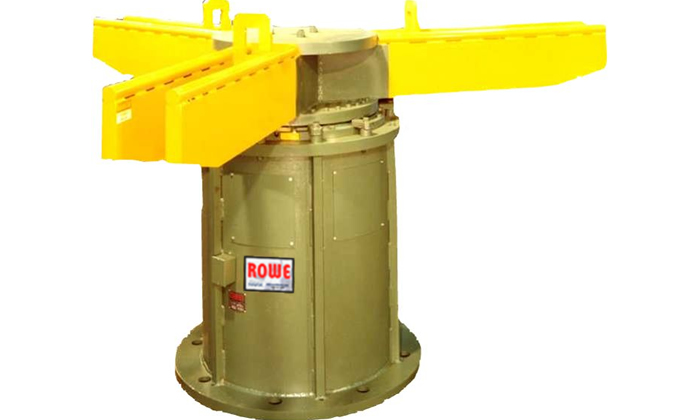

Standard Features (Turnstiles)

Standard Features (Turnstiles)
• Choice of (2), (3), or (4) Arm Models
• Coil Weight Capacities from 10,000 to 50,000 per arm
• Hydraulic Powered 360° Indexing
• Bi—Directional Operation
• Deep Slotted Coil Carrying Arms for Chain Clearance

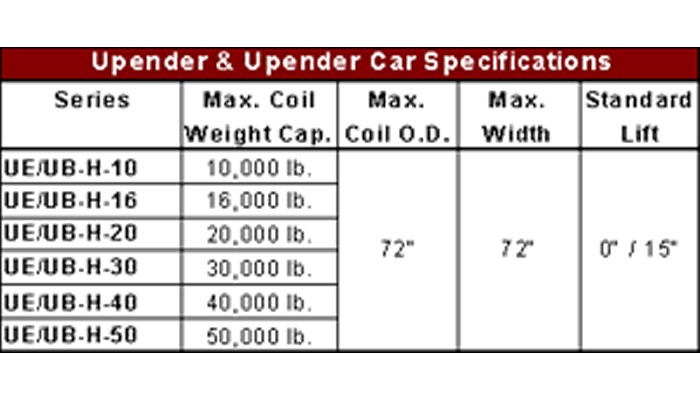

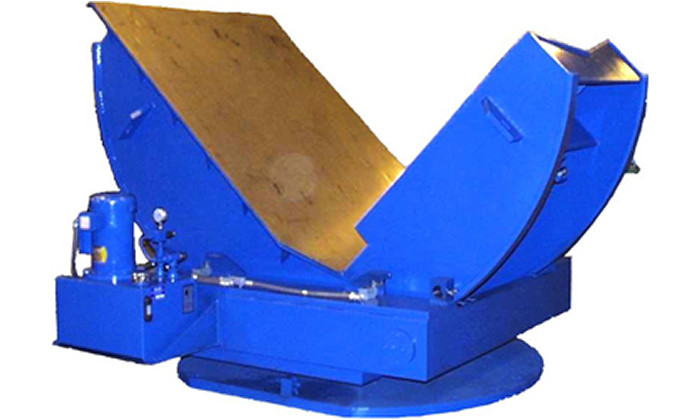

Standard Features (Coil Upender)

Standard Features (Coil Upender)
• Coil Weight Capacities from 10,000 to 50,000
• Electro—Mechanical and Hydraulic Powered Models Available
• 90° Powered Indexing "V" Nest
• Mechanical Safety Stops
• Hand Held Pendant

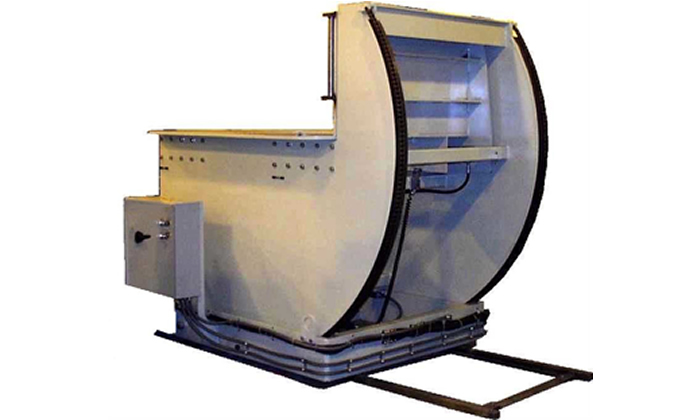

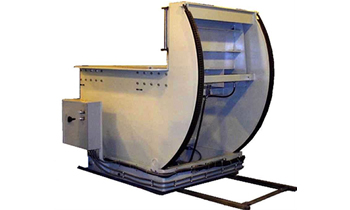

Standard Features (Coil Upender—Car)

Standard Features (Coil Upender—Car)
• Coil Weight Capacities from 10,000 to 50,000 per arm
• Electro—Mechanical and Hydraulic Powered Models Available
• 90° Powered Indexing "V" Nest
• 15" Powered Platform Lift
• (2) Wheel Drive
• Narrow Coil Support Arms
• Mechanical Safety Stops
• Hand Held Pendant

Specifications
